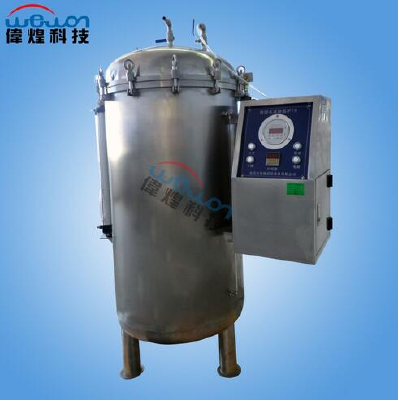

First, the characteristics of the equipment:

The device is based on GB4208 "shell protection grade (IP) and water immersion test equipment manufacturing IPX7, IPX8 code" standard, the water storage tank and liquid immersion for zero, this position remains unchanged through the overflow way, the sample was immersed in the depth of the encoder count, digital display water immersion depth.

Two, the main technical parameters: in line with: IPX7, IPX8 standard

1, container: SUS304 stainless steel cans

2, diameter: 600mm, height 1000mm

3, through the air compressor to simulate the largest tank water pressure of 20 meters; (according to the requirements of different water depth simulation)

4, keep the pressure range: 0.2MPa atmospheric pressure, with the pressure display; pressure gauge precision of 0.25 grade 4, pressure range: 0.2MPa atmospheric pressure, with the pressure display; 0.25 grade precision pressure gauge

5, time control: 0 ~ 99 minutes 99 seconds

6, lifting device: Portable stainless steel basket

7, this anti flooding test device with pressure protection riot device and drainage pressure relief device

8, water level display: scale plus water pipe

9, stainless steel tank thickness: 1mm

Two, structural material:

1, the liner is made of stainless steel 304

Six, safety protection device:

1, power overload, short circuit protection

2, grounding protection

3, water shortage protection

4, alarm
