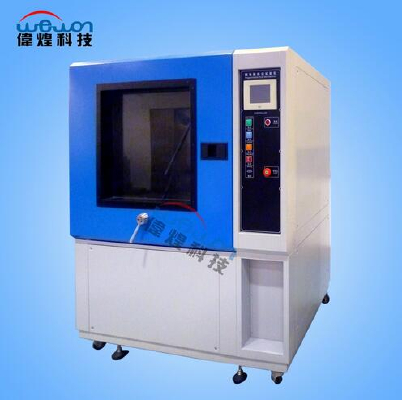

Box type rain test box use:

Box type rain test box through the simulated rain outside environment assessment and determine the effect of electronic and electrical products, external lighting device, automobile and motorcycle lamp shell and seal caused in the rain under the environment of the product, can provide the corresponding simulation environment and accelerated test for quality control, scientific research, product development etc..

Box of box type rain test standard:

Box type rain test box with GB4208 protection grade and GJB150.8 of military equipment, environmental test methods - rain test, "GB/T10485 lighting device for motor vehicles and their trailers" basic environmental testing, IEC60529 protection grade of national standards.

A box of box type rain test technical parameters:

1, water spray ring radius: 375 or 500mm

2, pipe diameter: diameter of 16mm

3, spray aperture: diameter of 0.4mm or 0.8mm.

4, water jet diameter: 50mm

5, water pressure: 50 ~ 100KPA

6, the number of water holes: 25

7, put the business picture: 45 ~ 60 ~ 90 ~ 180 degrees (numerical)

8, pendulum speed regulation: inorganic regulation

9, test bench speed: 1R ~ 5r/min (also adjustable speed, matching)

10, time setting range: 0 ~ 9999h

11, supply voltage: AC380V/50HZ

Two, box of box type rain test model (unit: mm) Weihuan technology also support for users of non-standard custom:

Model W-LY500 inner dimensions D x W x H 800 x 800 x 800

Model W-LY1000 inner dimensions D x W x H 1000 x 1000 x 1000

Three, box of box type rain test control system::

1, using programmable controller, control swing angle, swing frequency, turntable speed, select the tube and swing tube, and time loop settings, control system with Schneider executive components.

2, swing tube, rotary tube and turntable separate control system, select the swing tube can not start, select the swing tube can not start the swing.

3, time settings control several independent systems.

4, equipped with water filters, import executive components.

Material of box four, box of box type rain test:

1, the liner is made of imported high-quality stainless steel plate (SUS304).

2, the shell material of stainless steel plate spray treatment.

3, large area visible toughened glass door, easy to observe the test box sample.

4, with 270 degree swing tube and 360 degree rotation rod spray device.

5, adjustable speed sample table, hydraulic control: flowmeter.

6, water storage tank, booster pump.

7, the test box at the bottom of high-quality fixed PU movable wheel.

Five, box of box type rain test safety protection system:

Leakage, short circuit, motor overheating, overload, fuse protection switch protection.

Six, box of box type rain test equipment operating conditions:

1, the ambient temperature: 5 to 30 DEG C, relative humidity: less than 85%R.H.

2, before and after the machine placed around 80 cm can not place things.

Free door-to-door, after the installation and commissioning of the equipment, the relevant technical personnel to do the corresponding basic operation training.
