- Place of Origin: dongguan
- Brand Name: weihuang
- Model Number: W-LY500

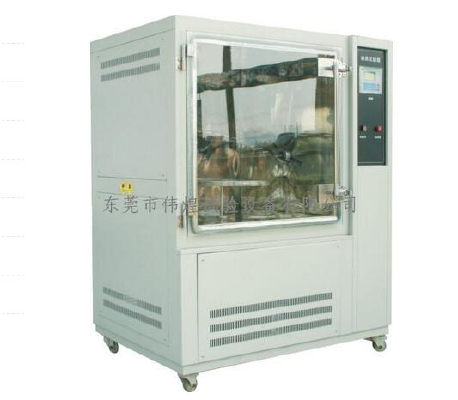

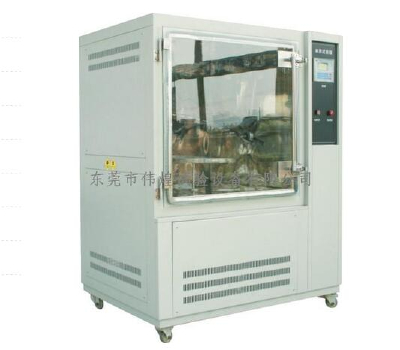

Rain test box
Use: it is mainly used in communications products, auto parts (such as car rearview mirror, car audio, automotive electronics, automotive lighting, automotive lamps, motorcycle lamps, motorcycle rearview mirror), waterproof performance test and IP test waterproof outdoor lighting and signal devices and other products to do.
Two, waterproof structure; test box box are made of SUS304 stainless steel plate made of the water tank is made of SUS304 stainless steel, with low bit full instructions and water spray pipe made of seamless stainless steel pipes, stainless steel table, and is equipped with a removable nozzle plug, the convenience of customers according to the number of nozzle standard requirements at any time replacement,. Test box door for single door. The left, with a large observation window, and is equipped with a wiper brush type rain test box, waterproof test box, waterproof tester to meet the standard: GB4208, IEC60529, GJB150, GB10485, IPX4, IPX3
Three, the main parameters:
1, model: W-LY500 W-LY1000
2, working size: 800*800*800W*H*D (mm)
Working size: 1000*1000*1000W*H*D (mm) or according to user requirements for non-standard custom
Machine size: 1500*1600*1500W*H*D (mm)
3, water spray ring radius 375mm
4, pipe diameter 20mm
5, the nozzle diameter is 0.4mm
6, aperture spacing 50mm
7, swing swing: 1-300 degrees (adjustable) stepper motor control
8, the rain water pressure: 50~150kpa (adjustable)
9 test of size: 600mm
10, turntable height: the same as the swing tube shaft.
11, swing tube: SUS304 hairline stainless steel plate
13, turntable material: stainless steel seamless pipe
14, protection device: leakage protection
15, power supply (V):220V
16, power (KW):1KW
17, 7 Inch Touch Screen Controller: xinje 4300C \ PLC, Shenzhen Xinjie Baishan electromechanical and stepper motor drive controller
Four, box structure:
1, the shell is made of high quality stainless steel hairline processing, stainless steel plate liner material;
2, large area visible glass door, easy to observe the test box was tested;
3, test with high quality can be fixed at the bottom of the box PU round, convenient for the user to move;
4, adjustable speed of the sample table;
5, water filtering device
Five, control interface
Equipment usage conditions
1, voltage: three-phase five wire 380V ; 50 Hz;
2, ambient temperature: 5 ~ 28 DEG C (up to 35 degrees C, but will affect part of the performance);
3, ambient humidity: < 85%R.H (25 C);
4, atmospheric pressure: 86 ~ 106Kpa;
5, environmental conditions: no strong vibration around the equipment site, no strong electromagnetic interference, no high concentration of dust and corrosive substances, no direct sunlight or other heat source direct radiation.
6, the equipment should be placed in a well ventilated test room, there should be enough space around for operation and maintenance
Quality assurance system
1, quality assurance system
The company strictly in accordance with the ISO9001 quality control system, ISO14001 environmental management system, the European CE product certification requirements.
2, the quality of screening
Our equipment and facilities dedicated meter aging units, motor test-bed, mechanical vibration table and environmental test chamber on the components of the plant into the high temperature, low temperature, humidity, vibration test strictly; in the production process, for each process of self inspection, mutual inspection by qualified quality inspection departments after the inflow of the next procedure; the factory products by intelligent hygrothermograph (type D64-2) and with a high precision platinum resistance special, factory inspection strictly.
Equipped with technical information and accessories
Technical information: product certificate, product manual, warranty card, instrument instruction manual; PC communication software CD, communication cable 1;
After sales technical service
1, in compliance with product precautions, installation and use of the rules, the product from the date of shipment, due to the quality of the product itself caused by a year of failure free warranty, and is responsible for life-long maintenance services.
2, if the product quality problems, after receiving the telephone repair (or fax) carried out within 15 minutes of the call if the phone can not solve the problem, then on the day of booking by our professional maintenance personnel on-site treatment.
3, in the warranty period my company will come to the product for free maintenance, troubleshooting; lifelong responsible for maintenance.
4, our long-term to provide users with free products, consulting, maintenance of technical advisory services; warranty, long-term provision of spare parts, reasonable fees (repair period only by accessories cost charge).
5, our company has specialized training department, not on a regular basis and technical personnel, sales staff and customers to use professional personnel and technical training, so that it can eliminate equipment failure for users in the shortest time, to ensure that users work smoothly.
6, in addition to my unit the unit product maintenance, have the ability to provide for other manufacturers of products (including environmental test of similar products abroad) for maintenance, renovation, upgrading and long-term maintenance services.
Note: in view of the particularity of the customer product testing requirements (continuous operation for a long time), we will strictly controlling the quality of products, to ensure that the equipment meets customer requirements, if not, customers can return unconditionally, we will unconditionally refund all payments, and bear cases, logistics and delays cost all.
